Specifications
Product Specifications
| Product Range | Standard Linear |
| LED Strip Type | Fixed Colour White |

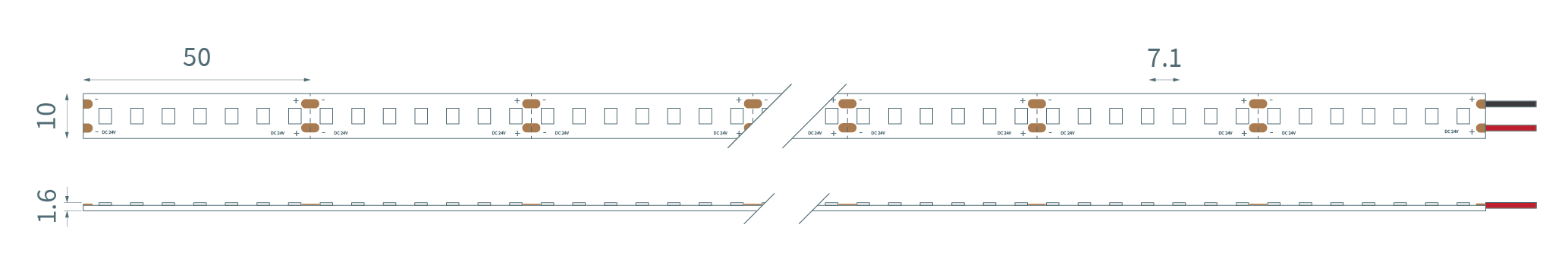

| LED Pitch | 7.1 mm |
| LED’s per metre | 140 |
| LED Cut Point | 50 mm |
| Dimensions | 10 mm x 1.6 mm x 30 m (Reel length) |
| Colour Temperature | 2200K |
| Lifetime | Up to XXXXX hours |
| Mounting Method | 3M™ VHB Tape |
Product Performance (Based on 1000mm)
| Voltage | 24 V |
| Power Consumption | 7.2 W |
| Lumen Output | 778 lm |
| Lumen Efficiency | 108.1 lm / W |
| Maximum Continuous Run | 10 m |
| IP Rating | IP 20 (Other IP ratings available) |
| CRI | 90+ Ra (95+ Ra available) |
| Colour Binning Step | 3 SCDM (2 SCDM available) |
| LED Beam Angle | 120 ° |
| Operating Temperature | -20°C ~ +50°C |
