Pixel 6500K 15.4W LED
DT-24-15.4-6500
Pixel LED tape is our programmable LED lighting that allows control of the LED’s enabling stunning visual effects that are both programmable and customizable. This allows for complex lighting effects such as dynamic colour changes, colour gradients, chasing patterns, or animations, all along the length of the strip.
Downloads
Specifications
Product Specifications
| Product Range | Digital Tape |
| LED Strip Type | Fixed Colour White |

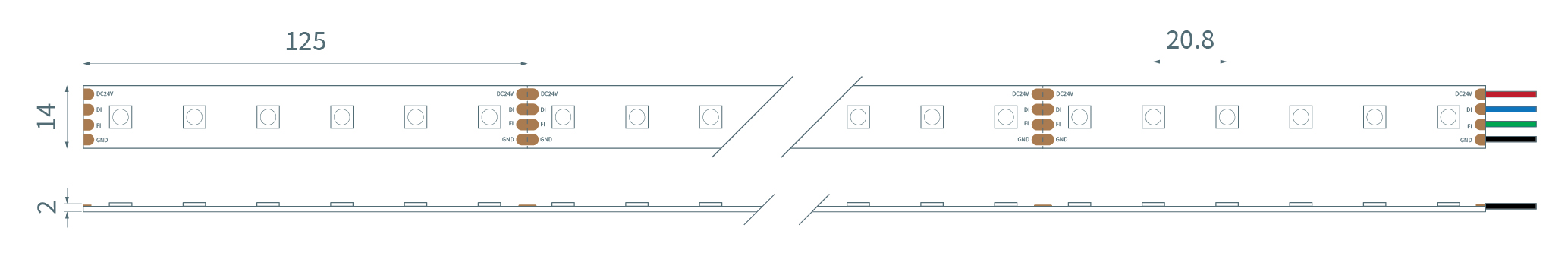

| LED Pitch | 20.8 mm |
| LED’s per metre | 48 |
| LED Cut Point | 125 mm |
| Dimensions | 14 mm x 2 mm x 30 m (Reel length) |
| Colour Temperature | 6500K |
| Lifetime | Up to 26300 hours |
| Mounting Method | 3M™ VHB Tape |
Product Performance (Based on 1000mm)
| Voltage | 24 V |
| Power Consumption | 15.36 W |
| Lumen Output | 1100 lm |
| Lumen Efficiency | 71.61 lm / W |
| Maximum Continuous Run | 5 m |
| IP Rating | IP 20 (Other IP ratings available) |
| CRI | 90+ Ra (95+ Ra available) |
| Colour Binning Step | 3 SCDM (2 SCDM available) |
| LED Beam Angle | 120 ° |
| Operating Temperature | -20°C ~ +50°C |
Pixel 6500K 15.4W LED
SKU: DT-24-15.4-6500
Pixel LED tape is our programmable LED lighting that allows control of the LED’s enabling stunning visual effects that are both programmable and customizable. This allows for complex lighting effects such as dynamic colour changes, colour gradients, chasing patterns, or animations, all along the length of the strip.
Downloads
Specifications
Product Specifications
| Product Range | Digital Tape |
| LED Strip Type | Fixed Colour White |
| LED Pitch | 20.8 mm |
| LED’s per metre | 48 |
| LED Cut Point | 125 mm |
| Dimensions | 14 mm x 2 mm x 30 m (Reel length) |
| Colour Temperature | 6500K |
| Lifetime | Up to 26300 hours |
| Mounting Method | 3M™ VHB Tape |
Product Performance (Based on 1000mm)
| Voltage | 24 V |
| Power Consumption | 15.36 W |
| Lumen Output | 1100 lm |
| Lumen Efficiency | 71.61 lm / W |
| Maximum Continuous Run | 5 m |
| IP Rating | IP 20 (Other IP ratings available) |
| CRI | 90+ Ra (95+ Ra available) |
| Colour Binning Step | 3 SCDM (2 SCDM available) |
| LED Beam Angle | 120 ° |
| Operating Temperature | -20°C ~ +50°C |
