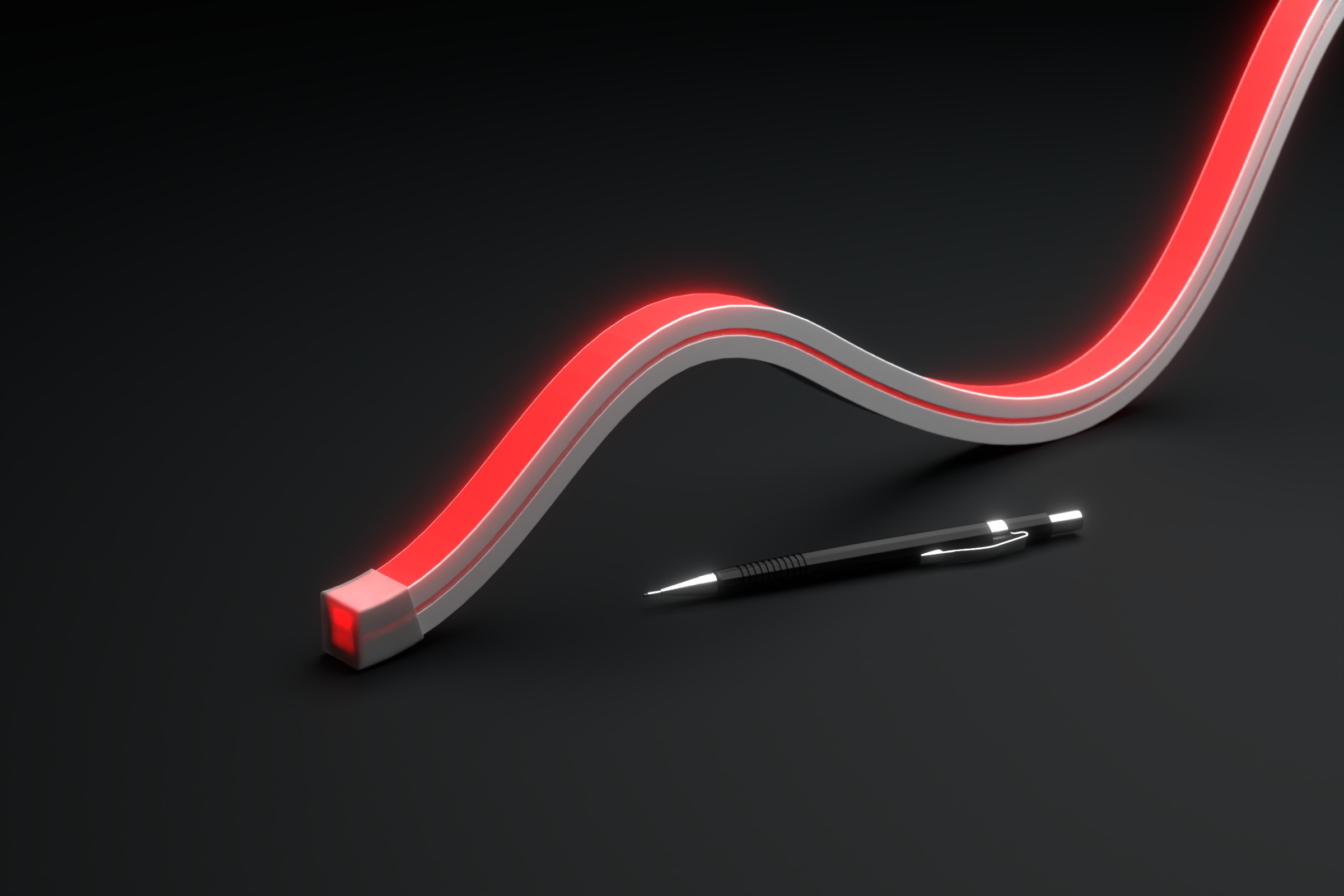

Top bend neon flex is a flexible, energy-efficient LED lighting solution designed to mimic traditional neon while offering greater versatility. It bends vertically on a flat plane, making it perfect for intricate designs with tight curves. Made from durable silicone, it provides seamless illumination without visible diode spots and is available in various colour options like Fixed Colour White, Colour Tuneable White, RGB and RGBW. Its energy efficiency, durability, and easy installation make it an ideal choice for both decorative and architectural lighting applications.
| Product Range | Neon Flex |
| LED Strip Type | RGB |
| LED Pitch | 10.41 mm |
| LED’s per metre | 96 |
| LED Cut Point | 62.5 mm |
| Dimensions | 16 mm x 16 mm x 5.05 m (Reel length) |
| Colour Temperature | – |
| Lifetime | upto 35000 hours |
| Mounting Method | See product accessories |
| Voltage | 24 V |
| Power Consumption | 9.6 W |
| Power Split – Red | 3.2 W |
| Power Split – Green | 3.2 W |
| Power Split – Blue | 3.2 W |
| Lumen Output | 245 lm |
| Lumen Split – Red | 58 lm |
| Lumen Split – Green | 150 lm |
| Lumen Split – Blue | 37 lm |
| Lumen Efficiency | 26 lm / W |
| Maximum Continuous Run (Powered from one end) | 5 m |
| IP Rating | IP 65 (IP 67 available) |
| CRI (Ra) | 90+ |
| Colour Binning Setup | 3 SCDM (2 SCDM available) |
| Operating Temperature | -20ºC ~ +50ºC |
