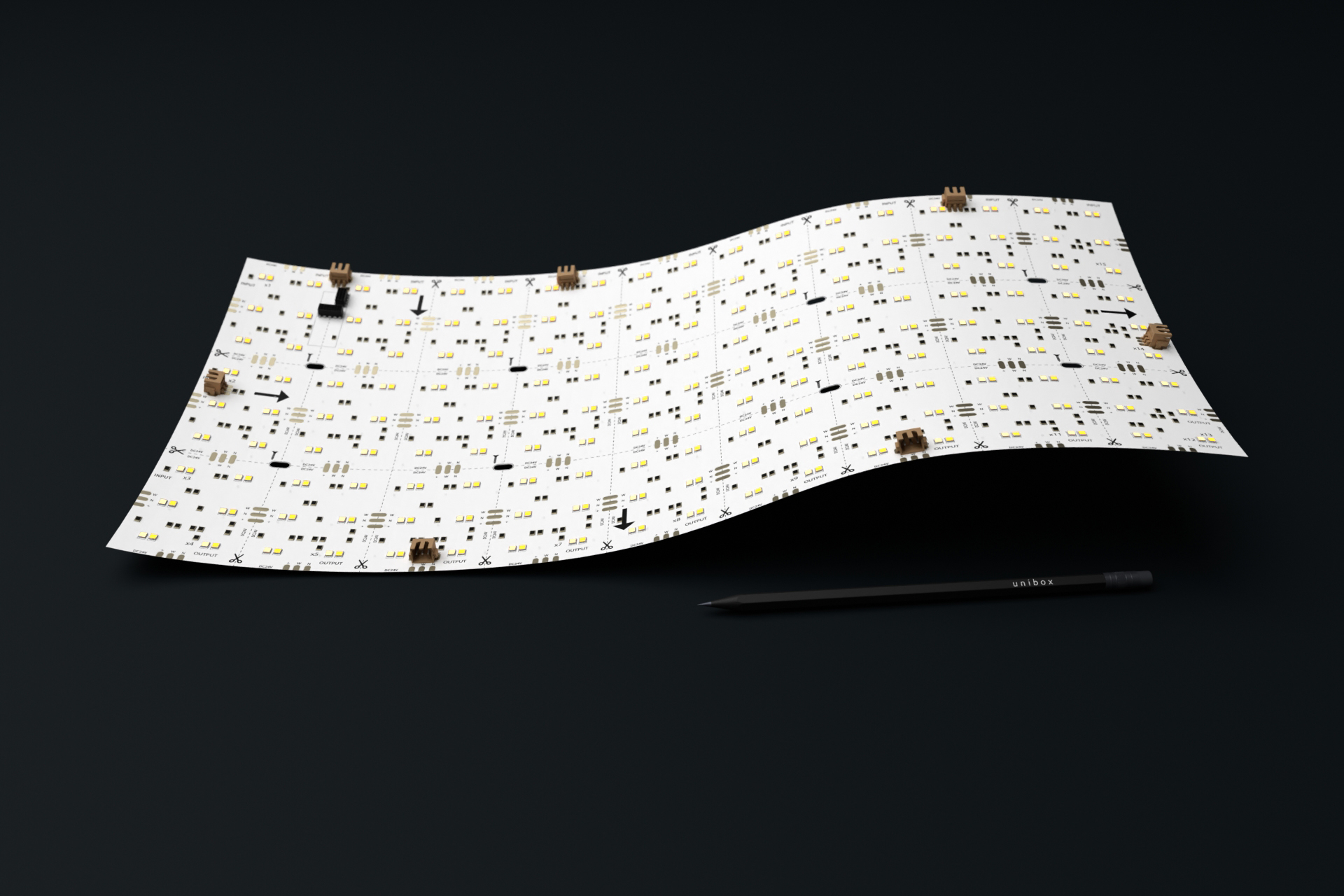

A Colour Tuneable White LED Flexible Sheet is a type of LED lighting solution that allows users to adjust the colour temperature of the emitted white light, typically ranging from warm white to cool white. This flexibility enables users to customize the lighting to suit different environments, moods, and tasks. These sheets are designed to be thin and flexible, making them versatile for various applications where adaptable and uniform lighting is required.
Our single cut (SS) flexible sheet allows for much more precision due to tighter LED pitch and the option to cut out a single diode within a sheet.
| Product Range | Flexible Sheet |
| LED Strip Type | Colour Tuneable White |
| LED Pitch | 26.7 mm x 26.7 mm |
| LED’s per metre | 324 |
| LED Cut Point | 53.3 mm x 80 mm |

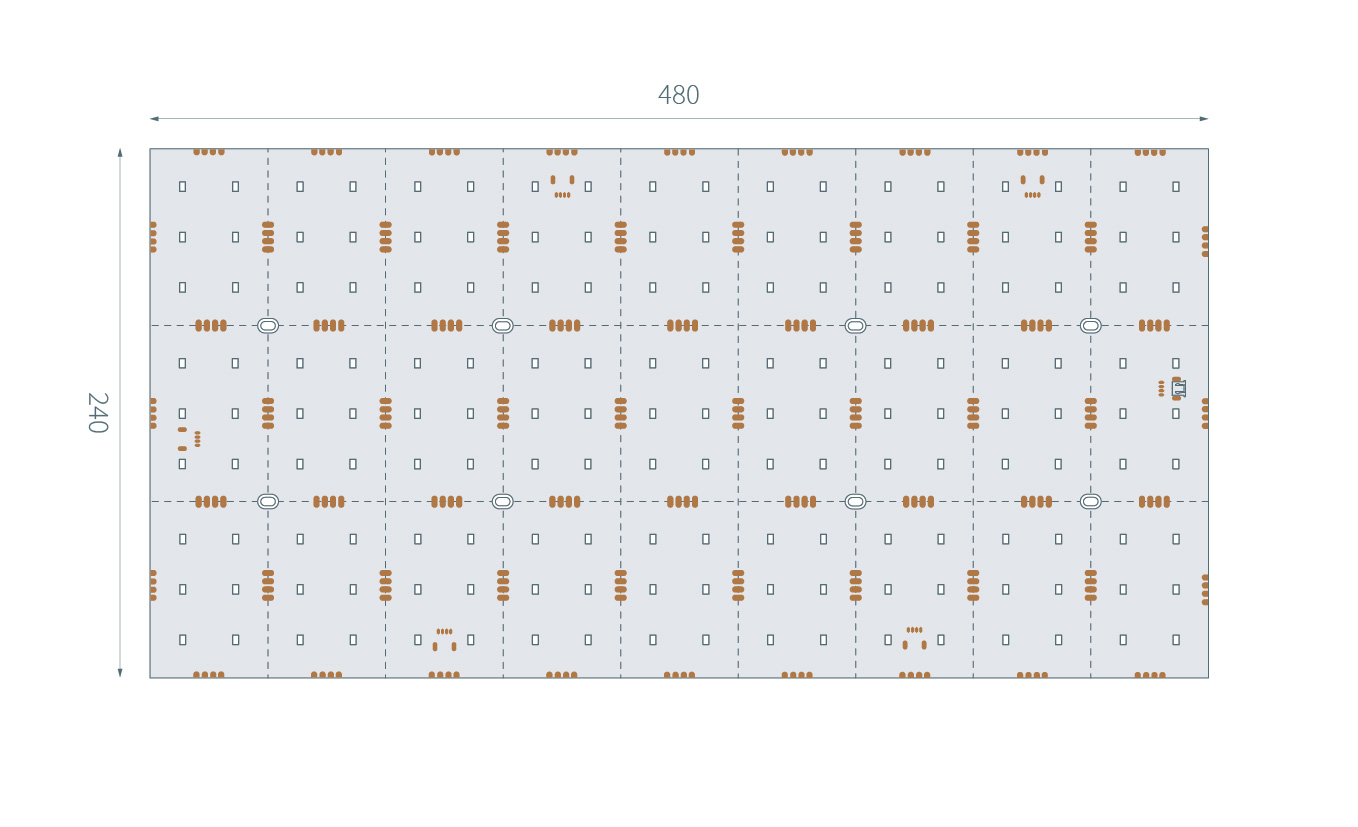

| Dimensions | 480 mm x 240 mm x 7 mm (Sheet size) |
| Colour Temperature | 2200K-6500K |
| Lifetime | Up to 26300 hours |
| Mounting Method | 3M™ VHB Tape |
| Voltage | 24 V |
| Power Consumption | 26 W |
| Power Split – Warm White | 13 W |
| Power Split – Cool White | 13 W |
| Lumen Output | 2151 lm |
| Lumen Split – Warm White | 933 lm |
| Lumen Split – Cool White | 1231 lm |
| Lumen Efficiency | 82.73 lm |
| Maximum Continuous Run | 4 sheets |
| IP Rating | IP 20 (Other IP ratings available) |
| CRI | 90+ Ra (95+ Ra available) |
| Colour Binning Step | 3 SCDM (2 SCDM available) |
| LED Beam Angle | 120 ° |
| Operating Temperature | -20°C ~ +60°C |
