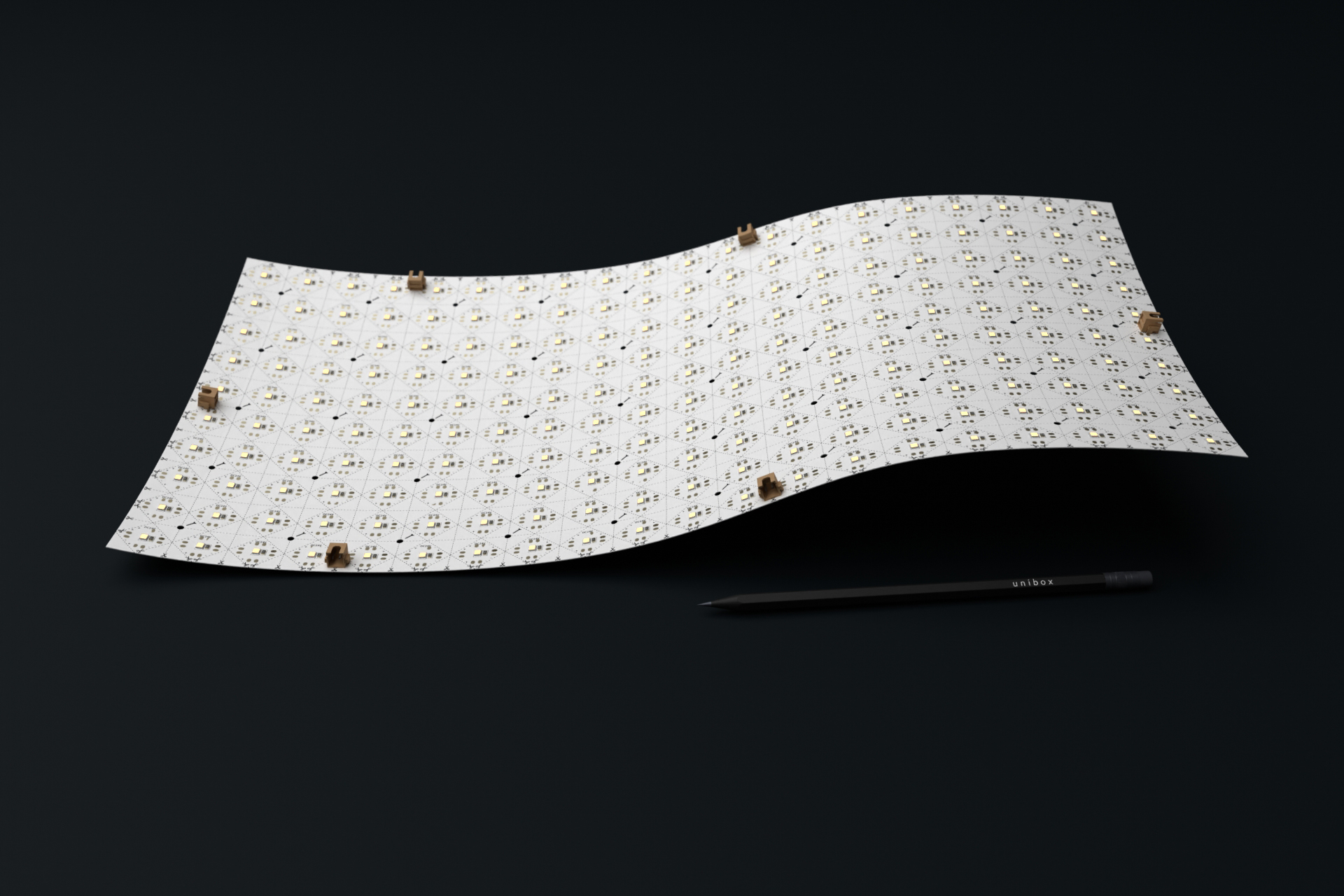

A Fixed Colour White LED Flexible Sheet is a type of lighting panel that emits a consistent, single colour temperature of white light, designed to provide even and uniform illumination across its flexible surface. Unlike standard rigid LED sheets, these flexible sheets can bend or conform to curved surfaces, allowing for more versatile installation in tight or unconventional spaces. This type of LED tape is specifically designed to provide a steady white light in either warm, neutral, or cool tones.
Our single cut (SS) flexible sheet allows for much more precision due to tighter LED pitch and the option to cut out a single diode within a sheet.
| Product Range | Flexible Sheet |
| LED Strip Type | Fixed Colour White |
| LED Pitch | 24 mm x 24 mm |
| LED’s per metre | 200 |
| LED Cut Point | 24 mm x 24 mm |
| Dimensions | 480 mm x 240 mm x 7 mm (Sheet size) |
| Colour Temperature | 3000K |
| Lifetime | Up to 54000 hours |
| Mounting Method | 3M™ VHB Tape |
| Voltage | 24 V |
| Power Consumption | 15.36 W |
| Lumen Output | 1105 lm |
| Lumen Efficiency | 71.94 lm / W |
| Maximum Continuous Run | 4 sheets |
| IP Rating | IP 20 (Other IP ratings available) |
| CRI | 90+ Ra (95+ Ra available) |
| Colour Binning Step | 3 SCDM (2 SCDM available) |
| LED Beam Angle | 120 ° |
| Operating Temperature | -20°C ~ +60°C |
