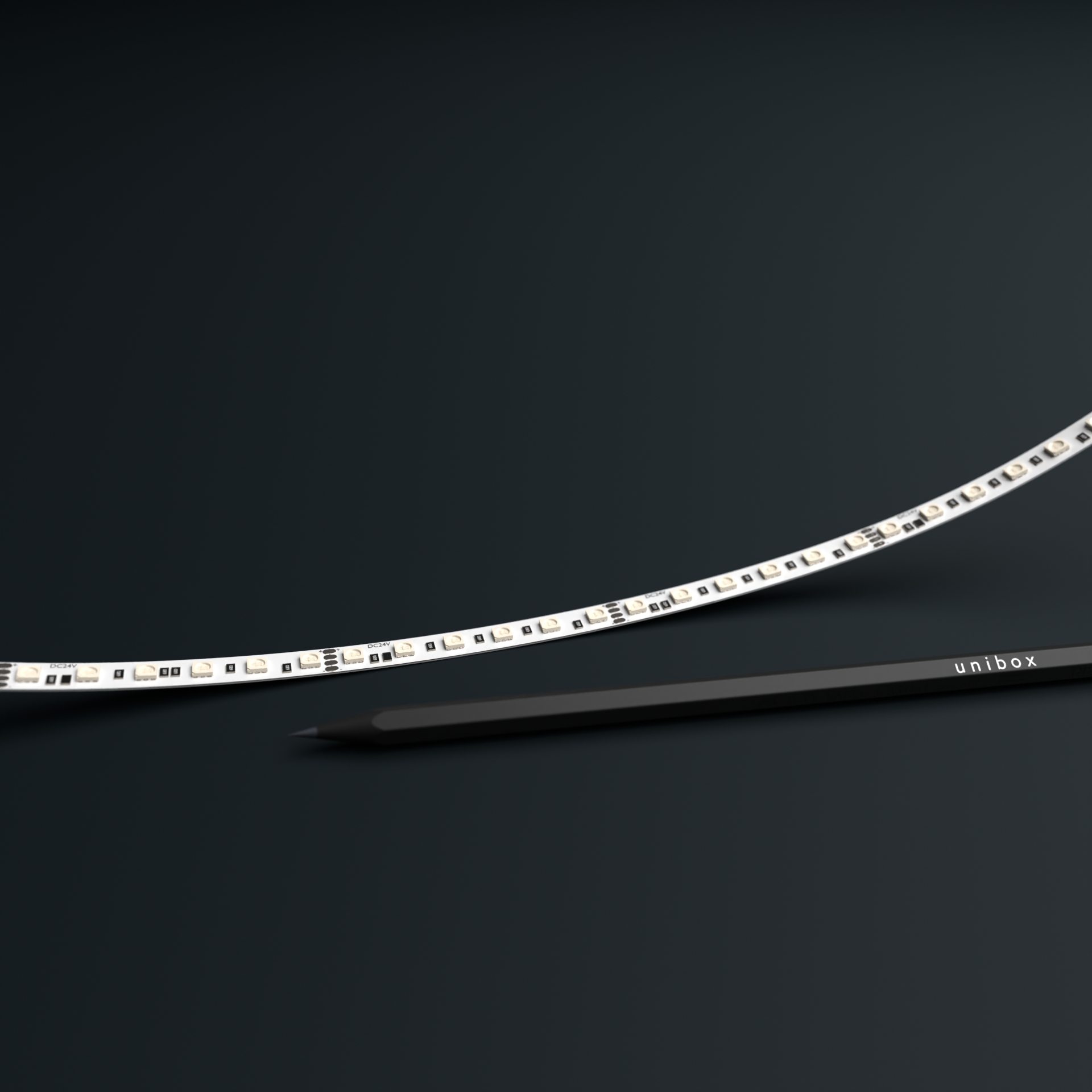

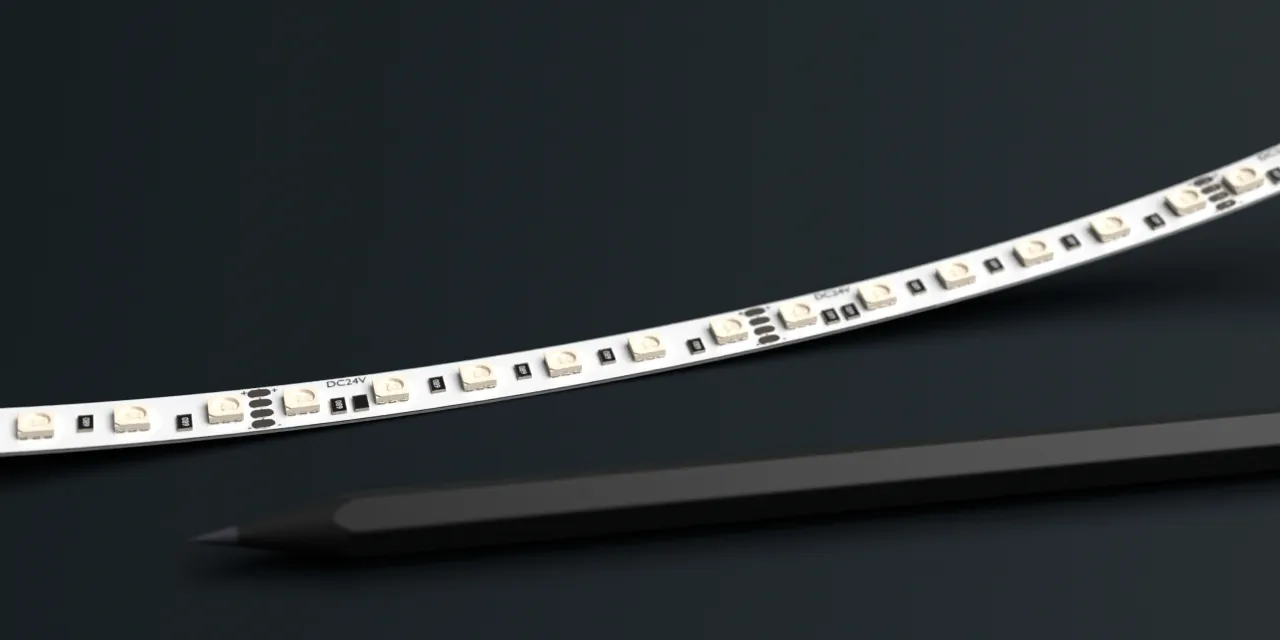

RGB LED tape is a type of LED lighting strip that contains red, green, and blue LEDs, allowing for a wide range of colours by blending these three primary colours. RGB LED tape is popular for creating vibrant lighting effects in various environments, such as retail, hospitality, signage, and interiors, as it can produce millions of colours by adjusting the brightness levels of each LED colour channel.
| Product Range | Slimline |
| LED Strip Type | RGB |

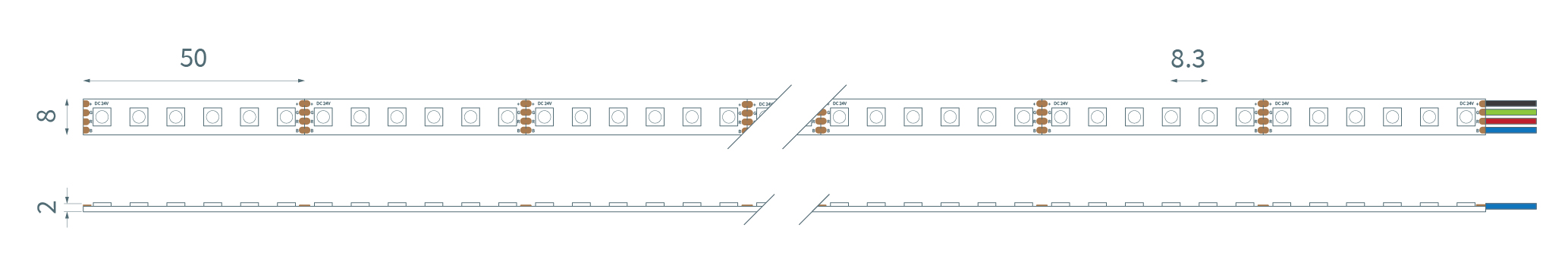

| LED Pitch | 8.33 mm |
| LED’s per metre | 120 |
| LED Cut Point | 50 mm |
| Dimensions | 8 mm x 3 mm x 30 m (Reel length) |
| Colour Temperature | – |
| Lifetime | up to 26300 hours |
| Mounting Method | 3M™ VHB Tape |
| Voltage | 24 V |
| Power Consumption | 19.2 W |
| Power Split – Red | 6.4 W |
| Power Split – Green | 6.4 W |
| Power Split – Blue | 6.4 W |
| Lumen Output | 641 lm |
| Lumen Split – Red | 211 lm |
| Lumen Split – Green | 384 lm |
| Lumen Split – Blue | 87 lm |
| Lumen Efficiency | 31.97 lm / W |
| Maximum Continuous Run (Powered from one end) | 4 m |
| IP Rating | IP 20 (Other IP ratings available) |
| CRI (Ra) | – |
| Colour Binning Step | 3 SCDM (2 SCDM available) |
| LED Beam Angle | 120º |
| Operating Temperature | -20ºC ~ +50ºC |
