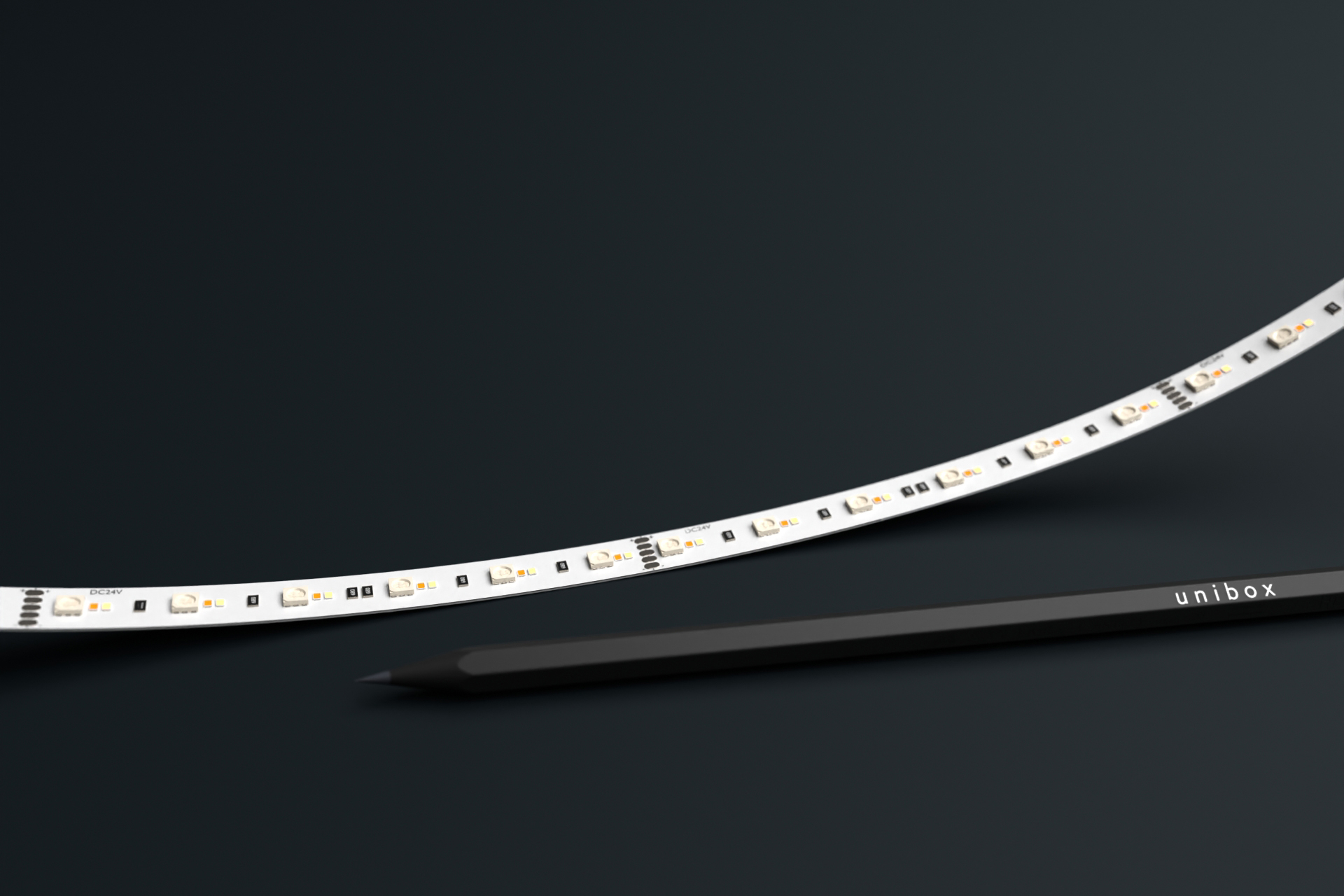

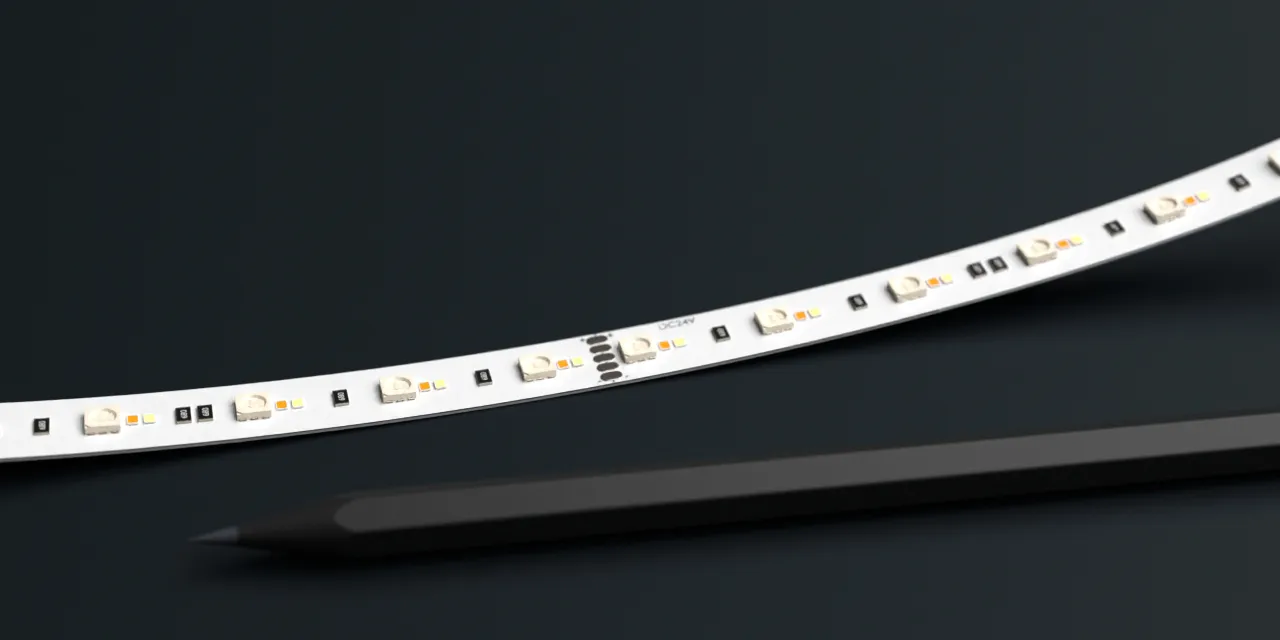

RGB+WW LED tape is an advanced type of LED strip that combines red, green, blue, warm white, and cool white LEDs in a single tape. This setup offers the most flexibility to produce a broad spectrum of colours, vibrant RGB hues, and various shades of white light, ranging from warm to cool. RGB+WW LED tape is highly versatile and is often used in settings that require both colourful lighting effects and high-quality adjustable white lighting.
| Product Range | Standard Linear |
| LED Strip Type | RGB+WW |

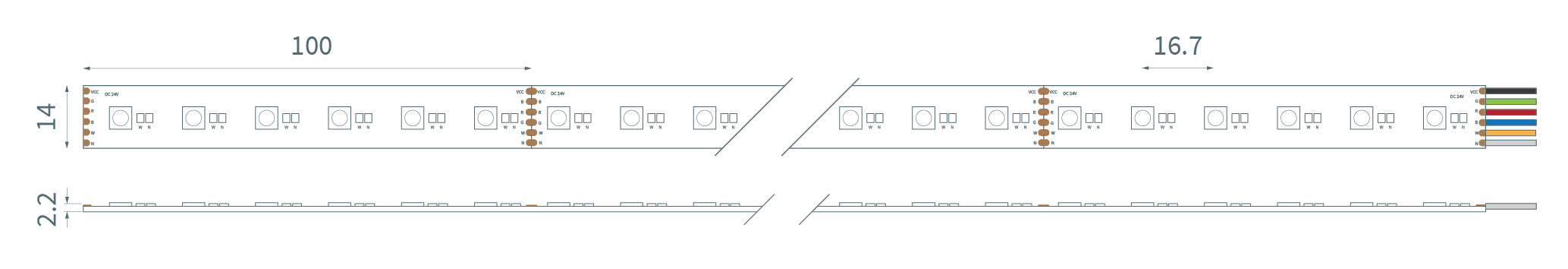

| LED Pitch | 16.7 mm |
| LED’s per metre | 180 |
| LED Cut Point | 100 mm |
| Dimensions | 14 mm x 2.2 mm x 30 m (Reel length) |
| Colour Temperature | – |
| Lifetime | Up to 35000 hours |
| Mounting Method | 3M™ VHB Tape |
| Voltage | 24 V |
| Power Consumption | 21.6 W |
| Power Split – Red | 2.4 W |
| Power Split – Green | 2.4 W |
| Power Split – Blue | 2.4 W |
| Power Split – Warm White | 7.2 W |
| Power Split – Cool White | 7.2 W |
| Lumen Output | 1268 lm |
| Lumen Split – Red | 68 lm |
| Lumen Split – Green | 118 lm |
| Lumen Split – Blue | 28 lm |
| Lumen Split – Warm White | 456 lm |
| Lumen Split – Cool White | 620 lm |
| Lumen Efficiency | 58.7 lm / W |
| Maximum Continuous Run | 3 m |
| IP Rating | IP 20 (Other IP ratings available) |
| CRI | 90+ Ra (95+ Ra available) |
| Colour Binning Step | 3 SCDM (2 SCDM available) |
| LED Beam Angle | 120 ° |
| Operating Temperature | -20°C ~ +50°C |
