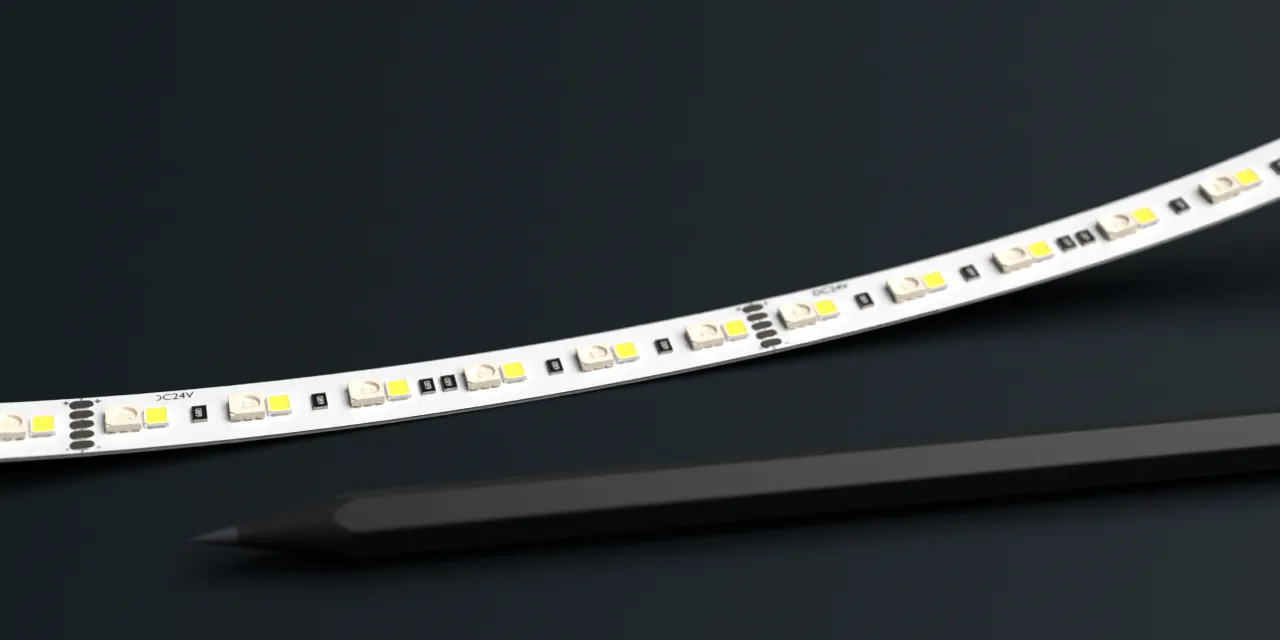

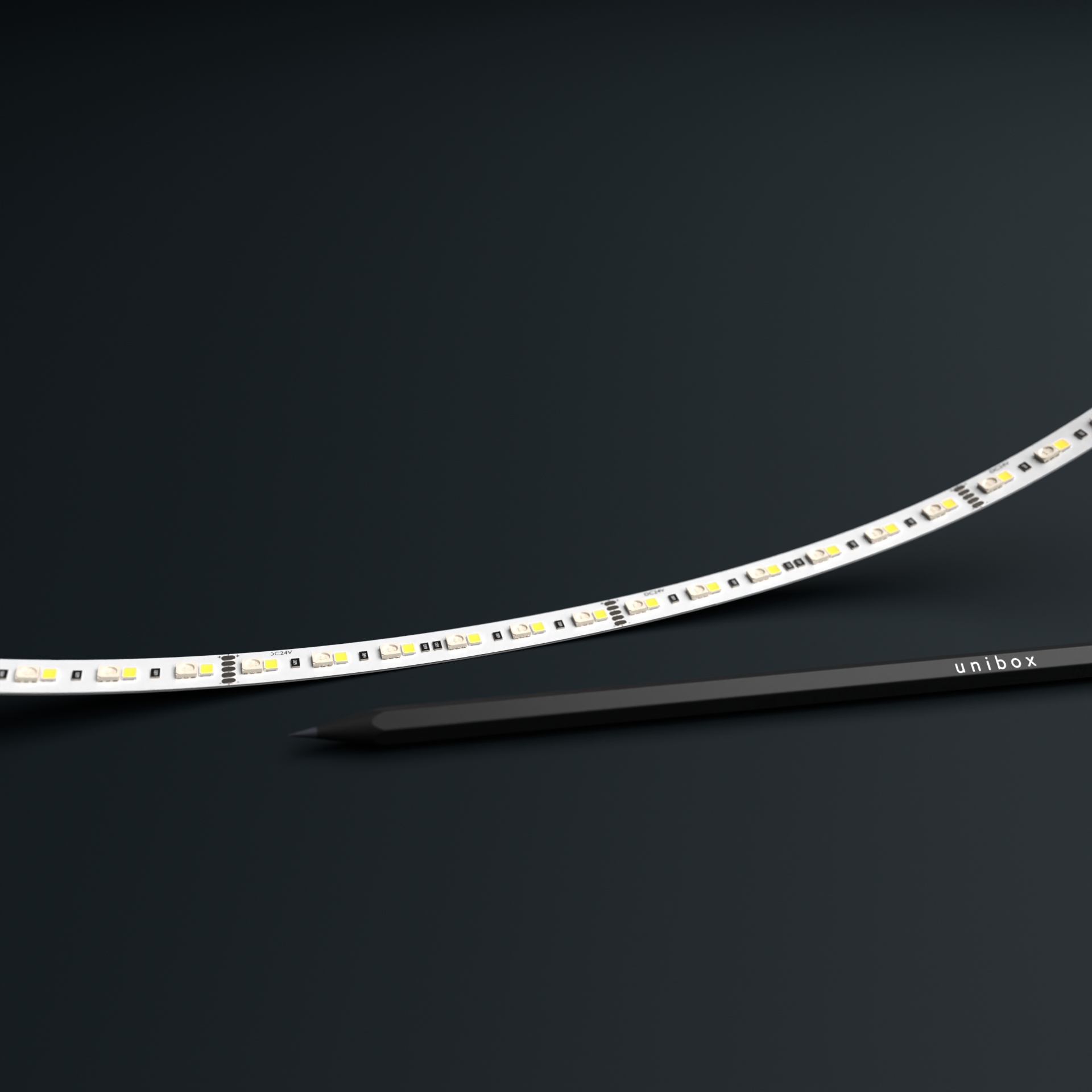

RGB+W LED tape is a type of LED strip that combines red, green, blue (RGB) diode, and a separate white (W) diode LEDs in a single tape. This combination provides a full range of colour options through RGB LEDs and adds a separate white LED for pure, high-quality white light. Unlike standard RGB LED tape, which blends red, green, and blue to approximate white, RGB+W tape produces a truer white light, making it more versatile for applications that require both colourful effects and functional white lighting.
| Product Range | Standard Linear |
| LED Strip Type | RGB+W |
| LED Pitch | 13.9 mm |
| LED’s per metre | 144 |
| LED Cut Point | 83.3 mm |
| Dimensions | 10 mm x 2 mm x 30 m (Reel length) |
| Colour Temperature | RGB+W (2400K) |
| Lifetime | Up to 26300 hours |
| Mounting Method | 3M™ VHB Tape |
| Voltage | 24 V |
| Power Consumption | 14.4 W |
| Power Split – Red | 2.4 W |
| Power Split – Green | 2.4 W |
| Power Split – Blue | 2.4 W |
| Power Split – White 2400K | 7.2 W |
| Lumen Output | 980 lm |
| Lumen Split – Red | 63 lm |
| Lumen Split – Green | 216 lm |
| Lumen Split – Blue | 44 lm |
| Lumen Split – White 2400K | 691 lm |
| Lumen Efficiency | 68.05 lm / W |
| Maximum Continuous Run | 5 m |
| IP Rating | IP 20 (Other IP ratings available) |
| CRI | 90+ Ra (95+ Ra available) |
| Colour Binning Step | 3 SCDM (2 SCDM available) |
| LED Beam Angle | 120 ° |
| Operating Temperature | -20°C ~ +50°C |
