Tuneable 12W Chip-on-Board LED
COB-24-12-WN

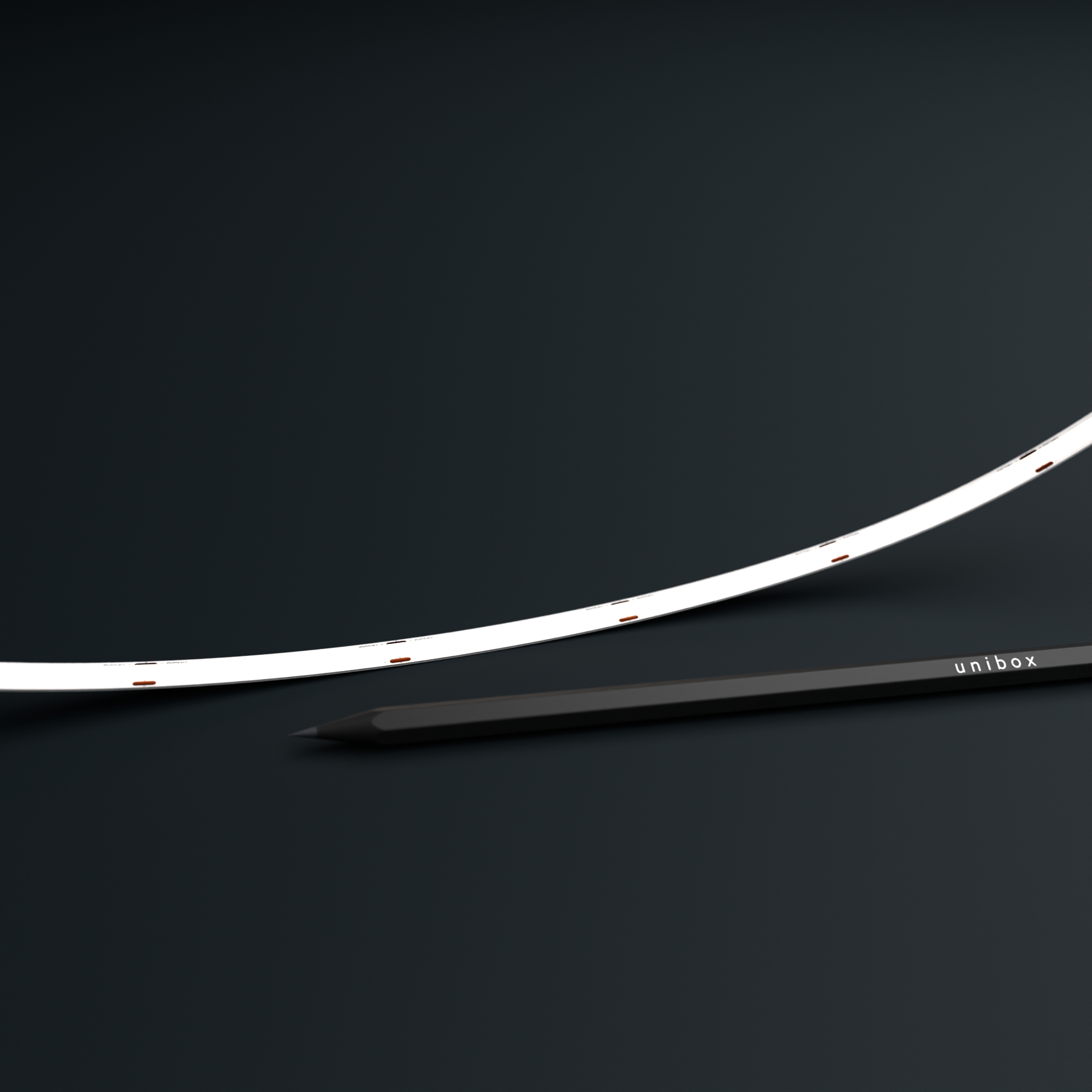

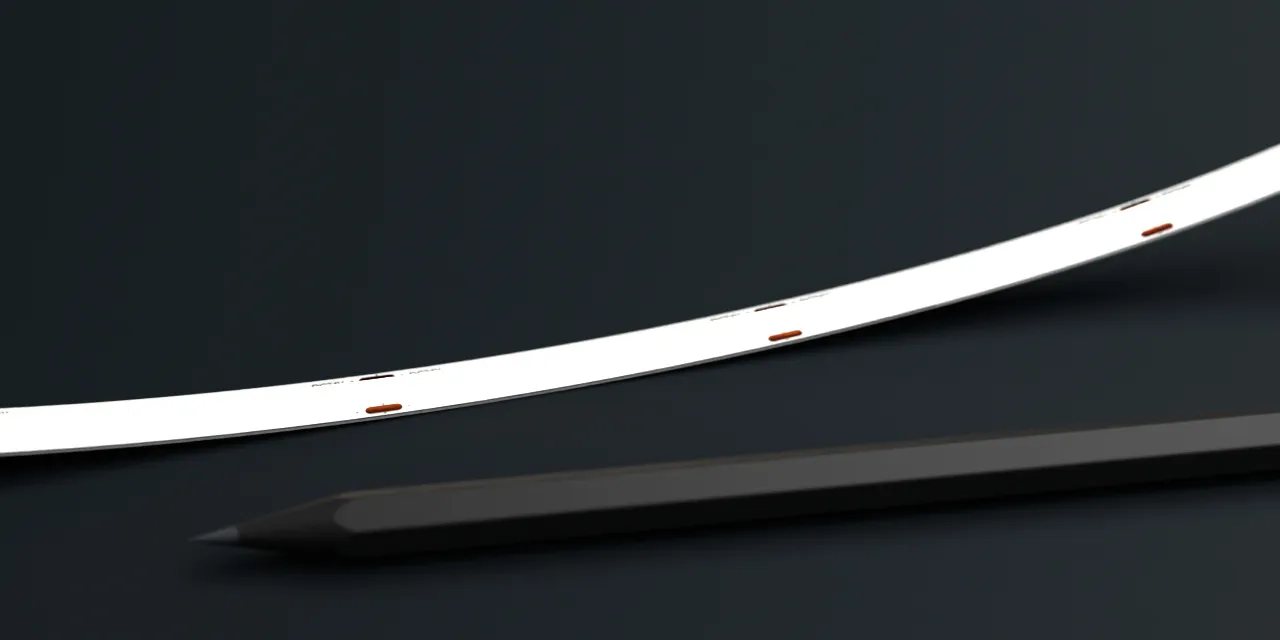

Our chip-on-board LED is a newer type of LED module that contains a densely populated number of LED’s providing a higher intensity in light output in comparison to standard LED’s. It has greater uniformity due the continuous phosphor coating spanning the length of the LED tape rather than the traditional individual diodes.
Downloads
Specifications
Product Specifications
| Product Range | COB (Chip On-board) |
| LED Strip Type | Colour Tuneable White |
| LED Pitch | 1.73 mm |
| LED’s per metre | 576 |
| LED Cut Point | 50 mm |

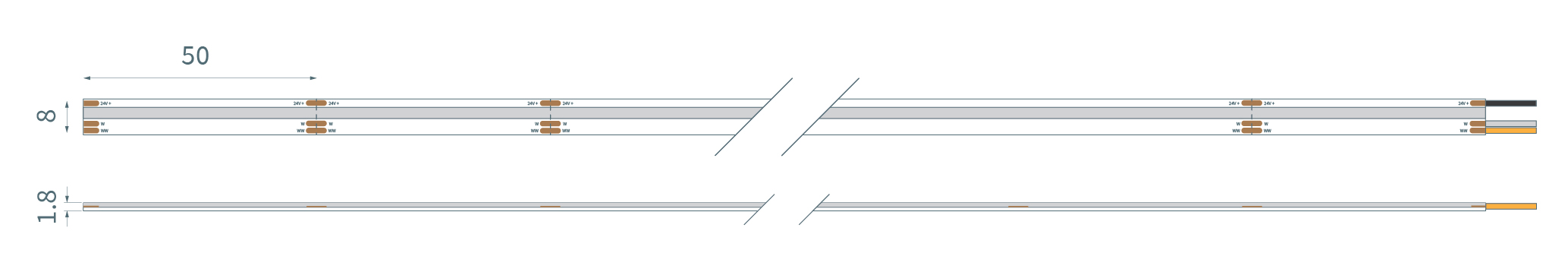

| Dimensions | 8 mm x 1.8 mm x 30 m (Reel length) |
| Colour Temperature | 2200K – 6500K |
| Lifetime | Up to 26300 hours |
| Mounting Method | 3M™ VHB Tape |
Product Performance (Based on 1000mm)
| Voltage | 24 V |
| Power Consumption | 12 W |
| Power Split – Warm White | 6 W |
| Power Split – Cool White | 6 W |
| Lumen Output | 950 lm |
| Lumen Split – Warm White | 420 lm |
| Lumen Split – Cool White | 540 lm |
| Lumen Efficiency | 79.16 lm / W |
| Maximum Continuous Run | 5 m |
| IP Rating | IP 20 (Other IP ratings available) |
| CRI | 90+ Ra (95+ Ra available) |
| Colour Binning Step | 3 SCDM (2 SCDM available) |
| LED Beam Angle | 180 ° |
| Operating Temperature | -20°C ~ +50°C |
