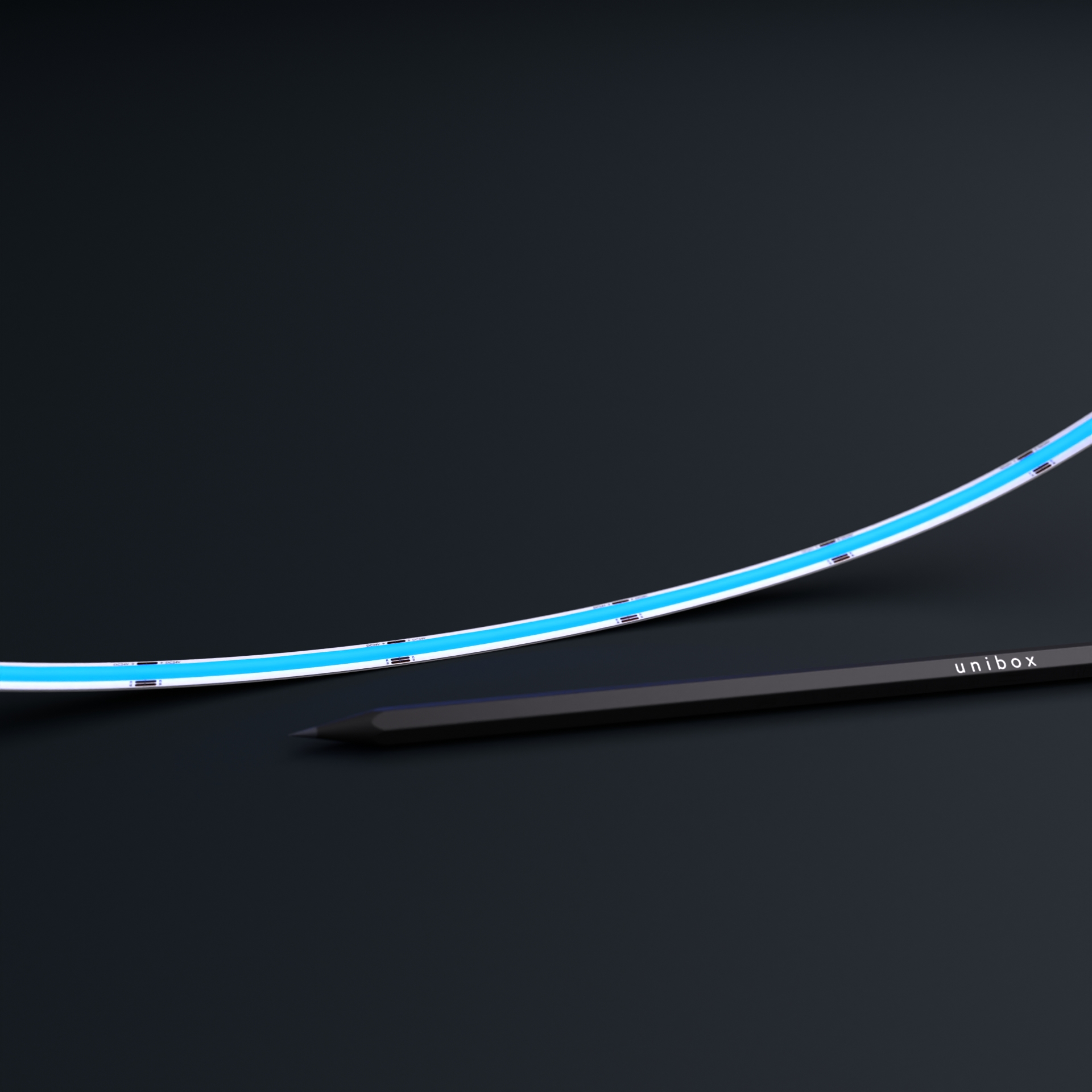

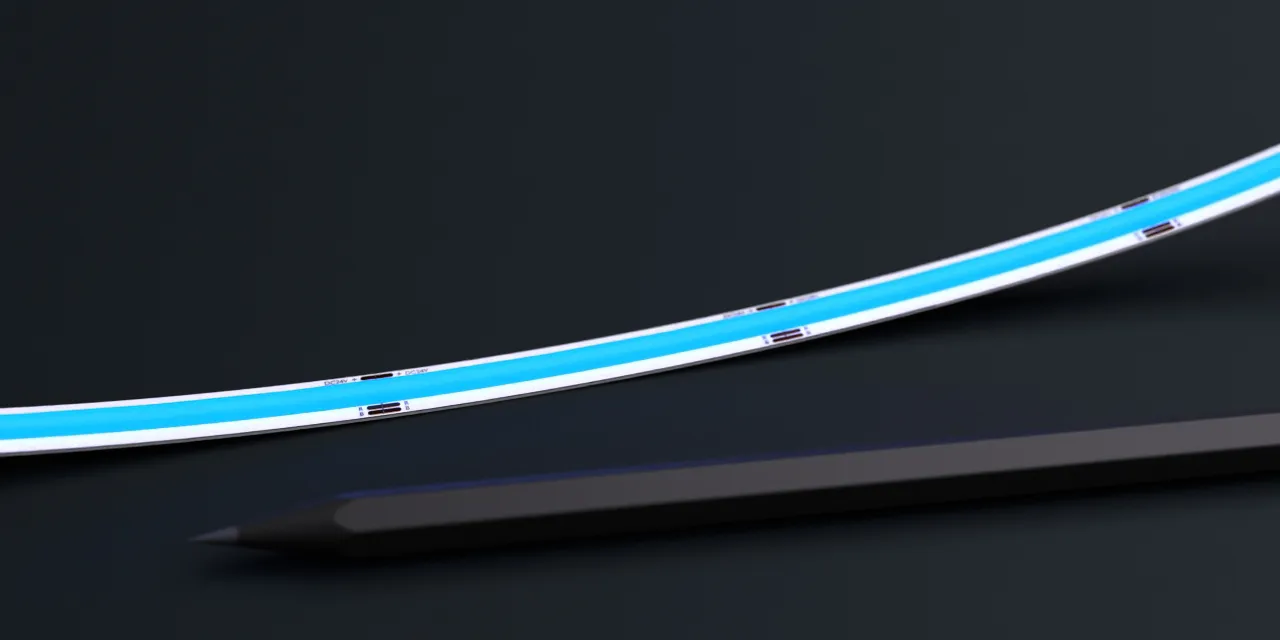

RGB 10W Chip-on-Board LED
COB-24-10-RGB
Our chip-on-board LED is a newer type of LED module that contains a densely populated number of LED’s providing a higher intensity in light output in comparison to standard LED’s. It has greater uniformity due the continuous phosphor coating spanning the length of the LED tape rather than the traditional individual diodes.
Downloads
Specifications
Product Specifications
| Product Range | COB (Chip On-board) |
| LED Strip Type | RGB |
| LED Pitch | 1.48 mm |
| LED’s per metre | 672 |

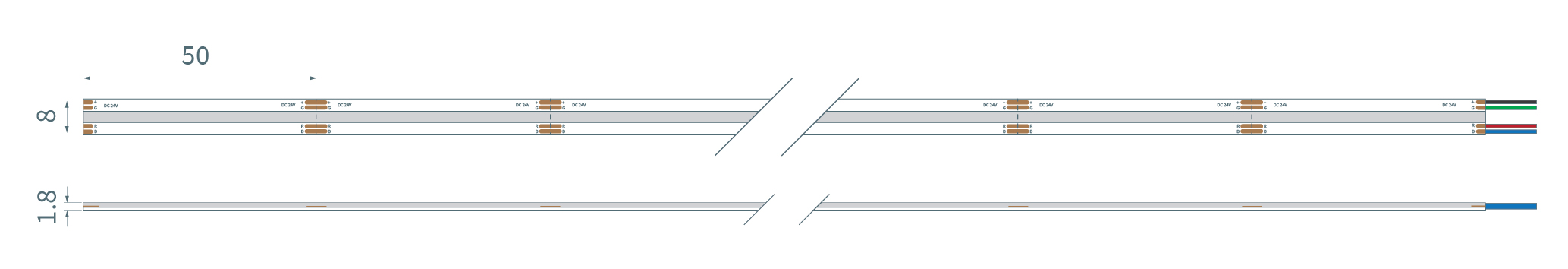

| LED Cut Point | 50 mm |
| Dimensions | 8 mm x 1.8 mm x 30 m (Reel length) |
| Colour Temperature | – |
| Lifetime | Up to 26300 hours |
| Mounting Method | 3M™ VHB Tape |
Product Performance: (Based on 1000mm)
| Voltage | 24 V |
| Power Consumption | 15 W |
| Power Split – Red | 7 W |
| Power Split – Green | 4.5 W |
| Power Split – Blue | 3.5 W |
| Lumen Output | 744 lm |
| Lumen Split – Red | 182 lm |
| Lumen Split – Green | 472 lm |
| Lumen Split – Blue | 56 lm |
| Lumen Efficiency | 49.6 lm / W |
| Maximum Continuous Run | 5 m |
| IP Rating | IP 20 (Other IP ratings available) |
| CRI | 90+ Ra (95+ Ra available) |
| Colour Binning Step | 3 SCDM (2 SCDM available) |
| LED Beam Angle | 180 ° |
| Operating Temperature | -20°C ~ +50°C |
